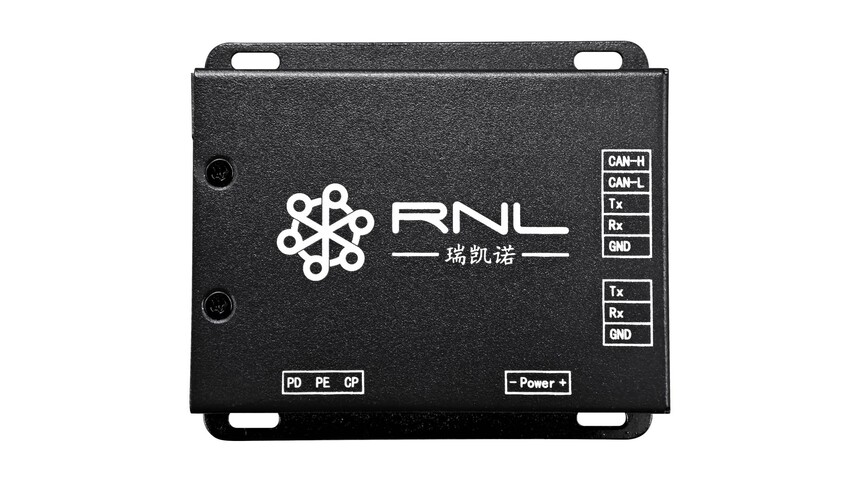

AC-SECC

The RNL SECC isafull-featured charging communication converter for the charging station side.It enables the upgrade of GB/T-compliant AC charging stations based on single PWM signaling to PLC-based communication compliant with ISO15118 standards (TLS, Plug & Charge, AC charging).The RNL SECC-GQSE8823 providesreal - time diagnostic information output via a serial interface ,facilitating fault diagnosis and system debugging. It supports automatic selection between AC EIM (External Identification Means) and Plug & Charge (PnC) modes. Inaddition, the solution can be customized to support proprietary communication protocols of the charging station main controller, based on specific project requirements.

• Support for CCS ( ISO/IEC 15118 - 2/ISO 15118 - 20 communication protocol standard )

• Hardware support upgrade ISO15118 - 1/2/3 Software EIM message set

• With diagnostic and debugging functions

• Functionality for local upgrading of the programme

• Simple control and monitoring with CAN

• Customised protocols can be supported
